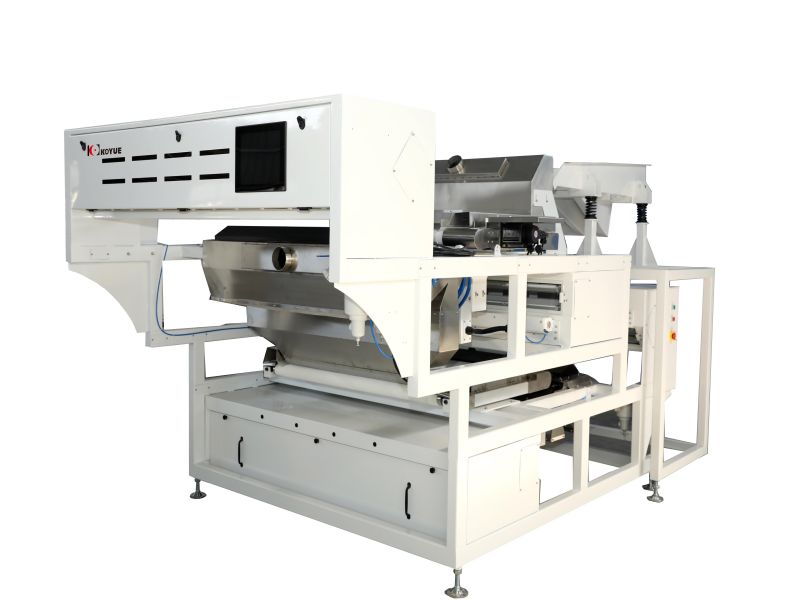

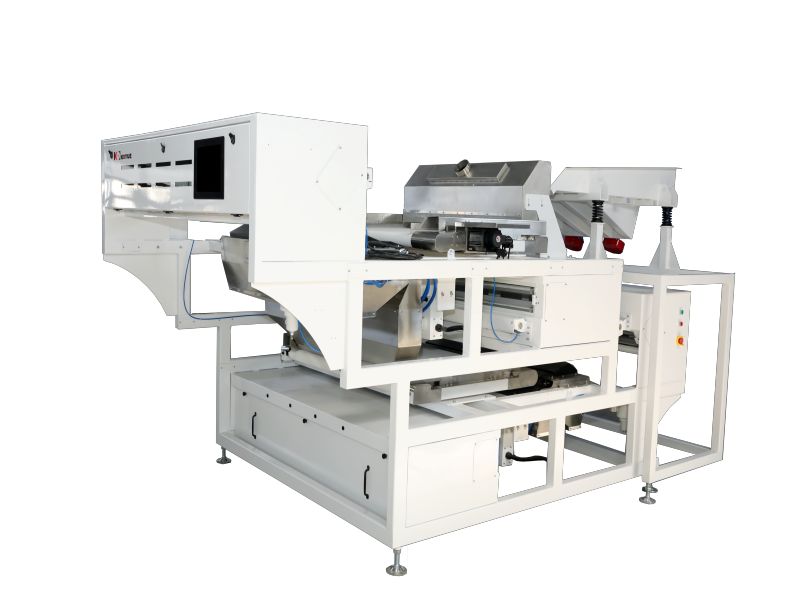

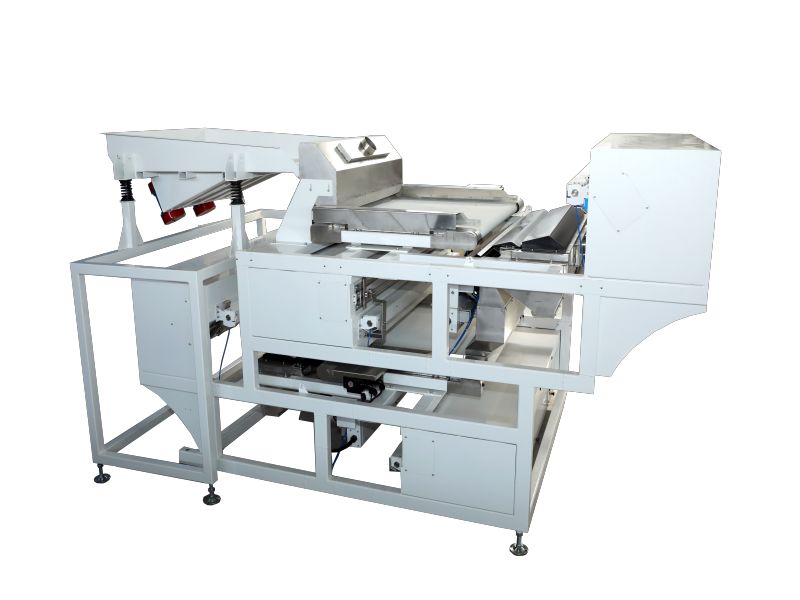

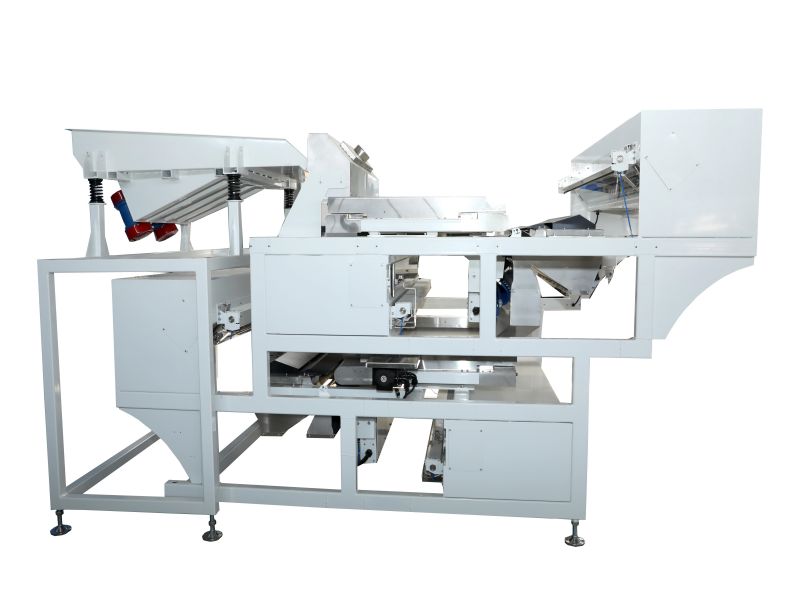

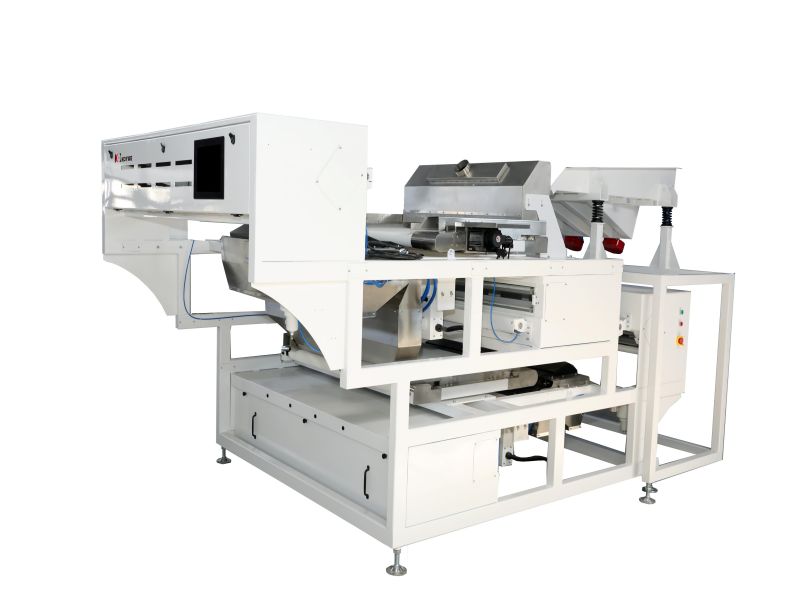

The koyue belt color sorters are made with the most sophisticated craftsmanship and rugged construction to ensure longevity and reliability even under the most demanding operating conditions.
Item No :
Multi-purpose color sorter LD1200sOrder(MOQ) :
1setPayment :
100%Product Origin :
Anhui HefeiColor :
whiteShipping Port :
shanghaiLead Time :
About fifteen daysWeight :
2860kgProduct Description
High selection rate, large single machine output, Engineering design, New open architecture, High modularity and standardisation of the whole machine structure.
Belt color sorter is a device that uses photoelectric detection technology to automatically sort out the different colored particles in granular materials according to the difference of optical properties of materials. Color sorter is used in the field of bulk materials or packaged industrial products, food quality testing and grading.
Sorting Examples
Product Parameters
| MODEL | LD300 | LD600 | LD1200 | LD300S | LD600S | LD1200S |
| Specification | 64 | 128 | 256 | 128 | 256 | 512 |
| Throughput(t/h) | 1-5 | 2-8 | 3-10 | 2-6 | 3-9 | 4-12 |
| Voltage(V) | 110~250V(50~60Hz) | 110~250V(50~60Hz) | 110~250V(50~60Hz) | 110~250V(50~60Hz) | 110~250V(50~60Hz) | 110~250V(50~60Hz) |
| Power(KW) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Weight(kg) | 2.0 | 2.5 | 4.8 | 2.5 | 4.8 | 5.0 |
| Dimension(LW*H/m) | 3200*1100*1800 | 3200*1100*1800 | 3200*1100*1800 | 3200*1600*2600 | 3200*1600*2600 | 3200*1600*2600 |
Product Features
1、Koyue Big Data
Cloud storage, massive database, wide range of material solutions, one machine with multiple options;
2、Cloud IOT system
Koyue cloud service technology platform, real-time remote control, operation and maintenance, software upgrade, product online operation monitoring, tracking service;
3、Multi-core parallel image processing system
Color selection, shape selection, intelligent selection program flexible collocation, parallel and efficient processing of massive image data;
4、Light source intelligent control dimming system
The advanced digital induction automatic dimming technology can automatically match the best brightness according to the material selection requirements and changes in the environment, fully guaranteeing the color selection effect;
5、Quality and behavior in one
Center of mass, shape center coordinate algorithm, material cross positioning
6、Dust removal and anti-crushing Large air volume, three-dimensional ring suction, the use of soft landing and buffer device, the depth of the role of the material crushing rate.

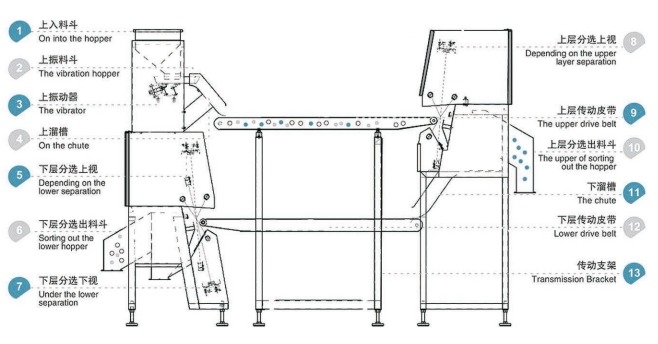

Technical Charts
Company Advantages
Introducing you to our extraordinary line of products that are the perfect combination of quality and longevity. At our store, we not only provide you with exceptional products, but we also promise you a lifetime warranty on all products you purchase. Yes, you read that right - your satisfaction is not only our promise, it's our commitment to each and every product.
From the moment you place an order with us, we make sure that your order is processed quickly and efficiently. With our streamlined logistics, you can expect your carefully selected items to arrive at the port in as little as fifteen days. We understand the excitement of receiving your purchases quickly, and we will endeavor to exceed your expectations every step of the way.
Our team of professionals has carefully curated a wide range of collections to bring you the latest trends and timeless classics. We pride ourselves on always focusing on quality craftsmanship and details to provide you with exceptional products that are built to last.
Explore our extensive collection and immerse yourself in a world of unrivaled elegance and style. From fine accessories to stunning home décor, each product is meticulously designed to enhance your lifestyle. Whether as a statement piece or a beautiful gift for a loved one, our collection is sure to captivate and inspire.
To ensure you have a truly perfect shopping experience, our friendly and knowledgeable customer support team is ready to assist you.
Designed to meet the demands of the modern global marketplace, the Belt Color Sorter combines innovation with functionality. Its state-of-the-art features ensure seamless integration with your production line, providing a seamless and efficient color sorting experience.
With the ability to identify and separate a wide range of colors with unparalleled accuracy, koyue belt color sorters pave the way for increased productivity and reduced waste.
The koyue belt color sorter is equipped with an intuitive user interface and a powerful control system that allows you to effortlessly navigate its various functions. Through a quick, user-friendly setup process, you can easily customize the parameters to adapt the machine to your specific sorting requirements. This level of customization allows you to maintain the highest product quality standards and adapt effortlessly to changing market trends.
The koyue belt color sorters are made with the most sophisticated craftsmanship and rugged construction to ensure longevity and reliability even under the most demanding operating conditions.
